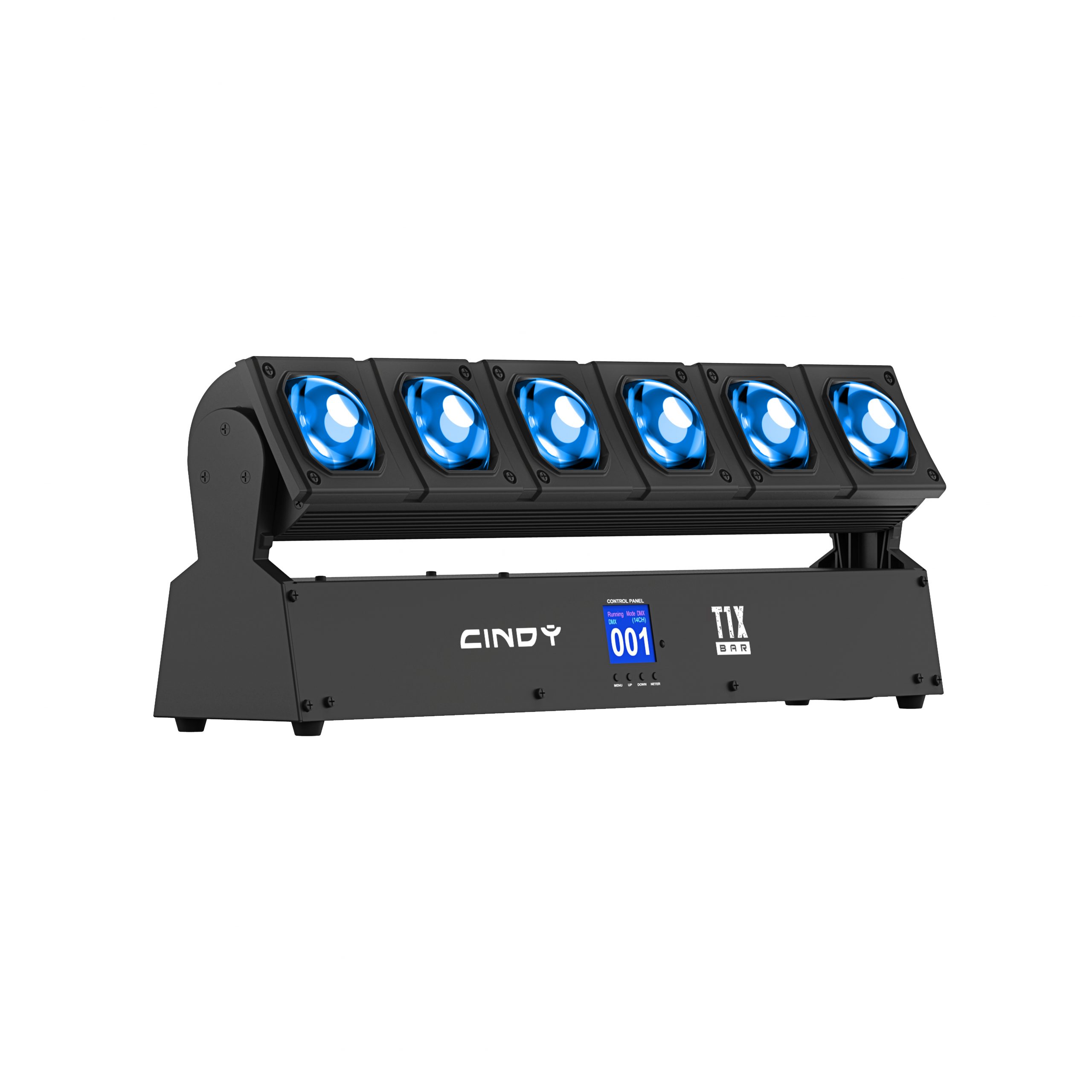

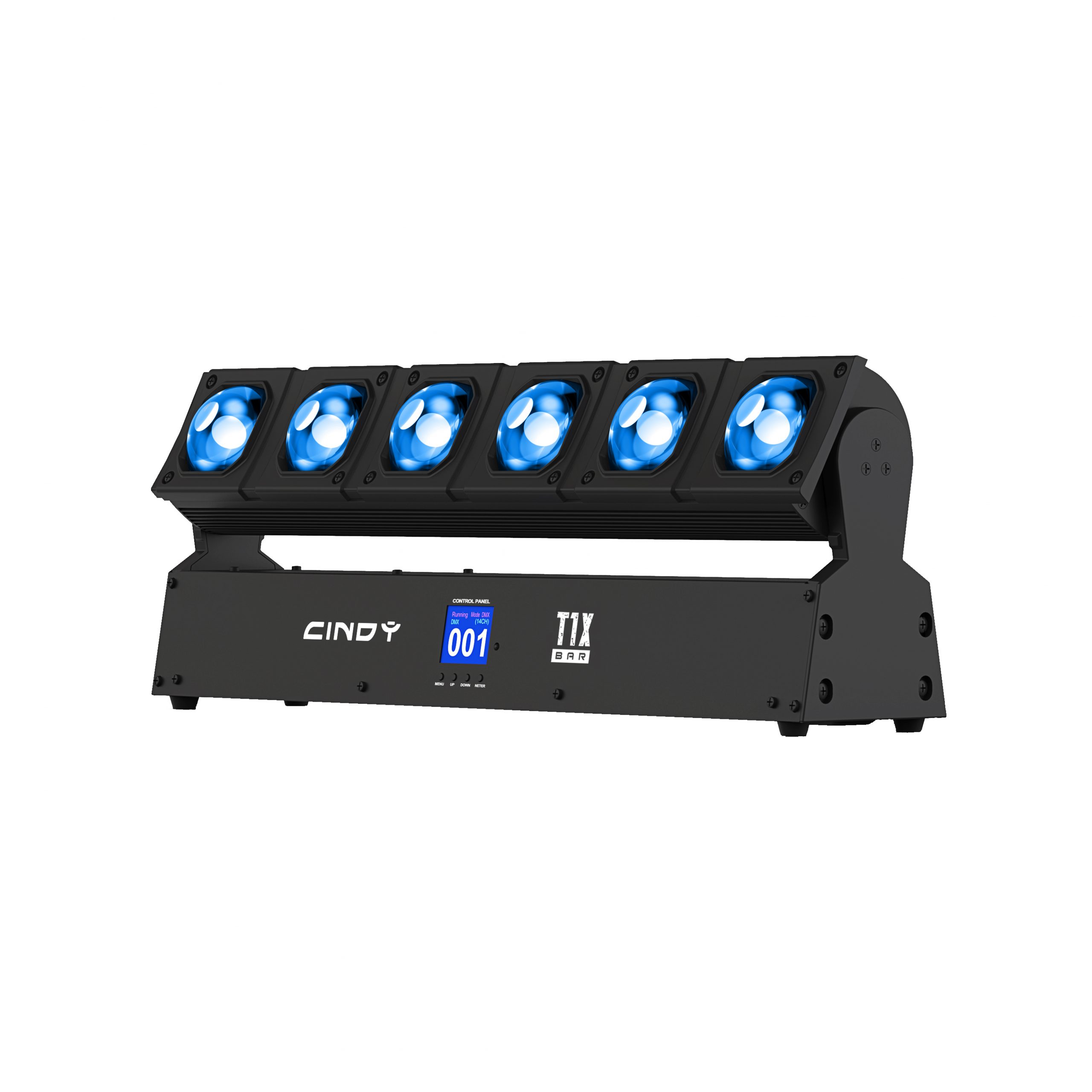

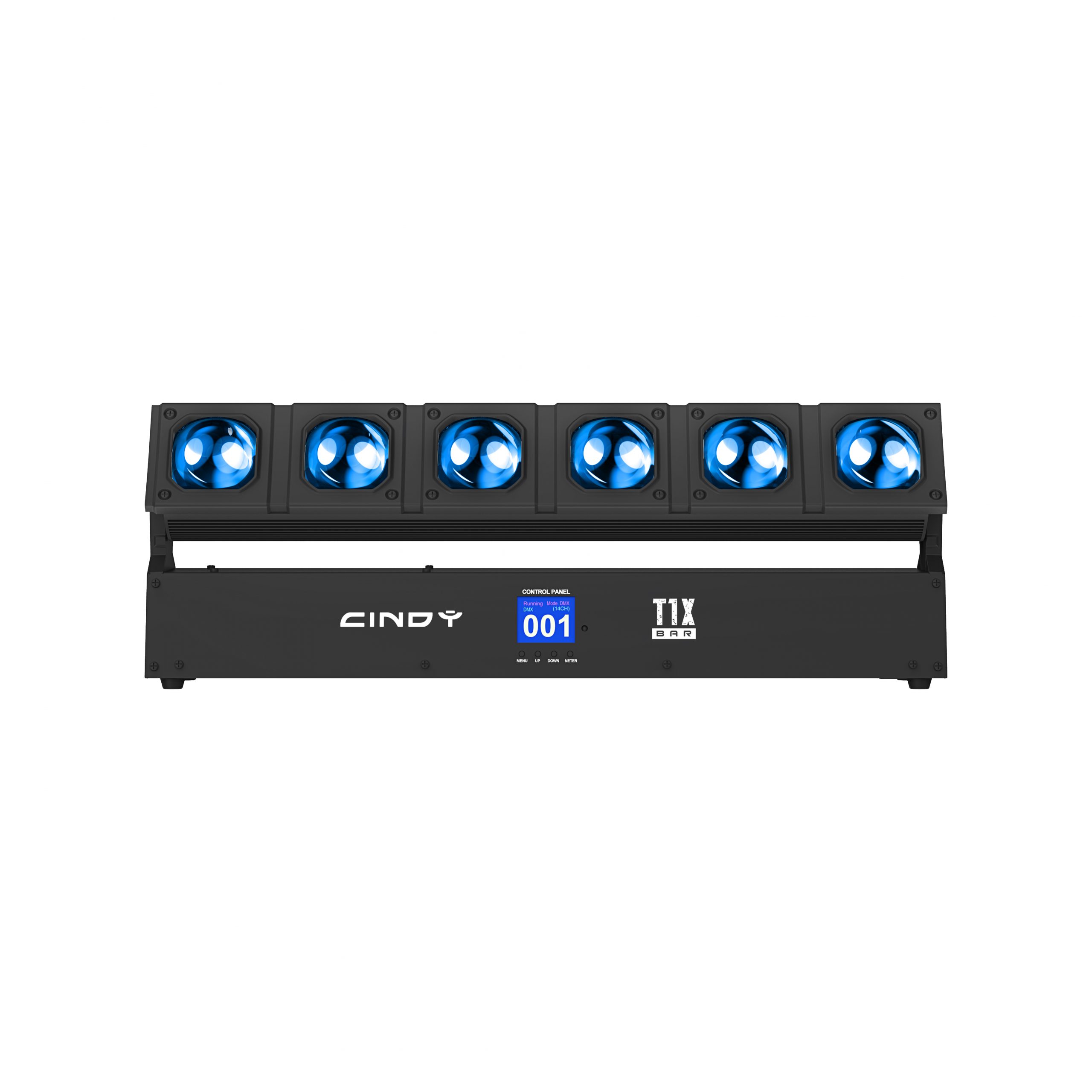

T1X BAR is a compact bar product suitable for concert, TV shows, etc. It has 6 pcs independently controlled 30W RGBW 4 in 1 LED. Tilt angles is from 0-200 degree, able to fully cover the stage. T1X BAR is a product to create sharp and colorful mid air effects.

Technical & Specification

光源

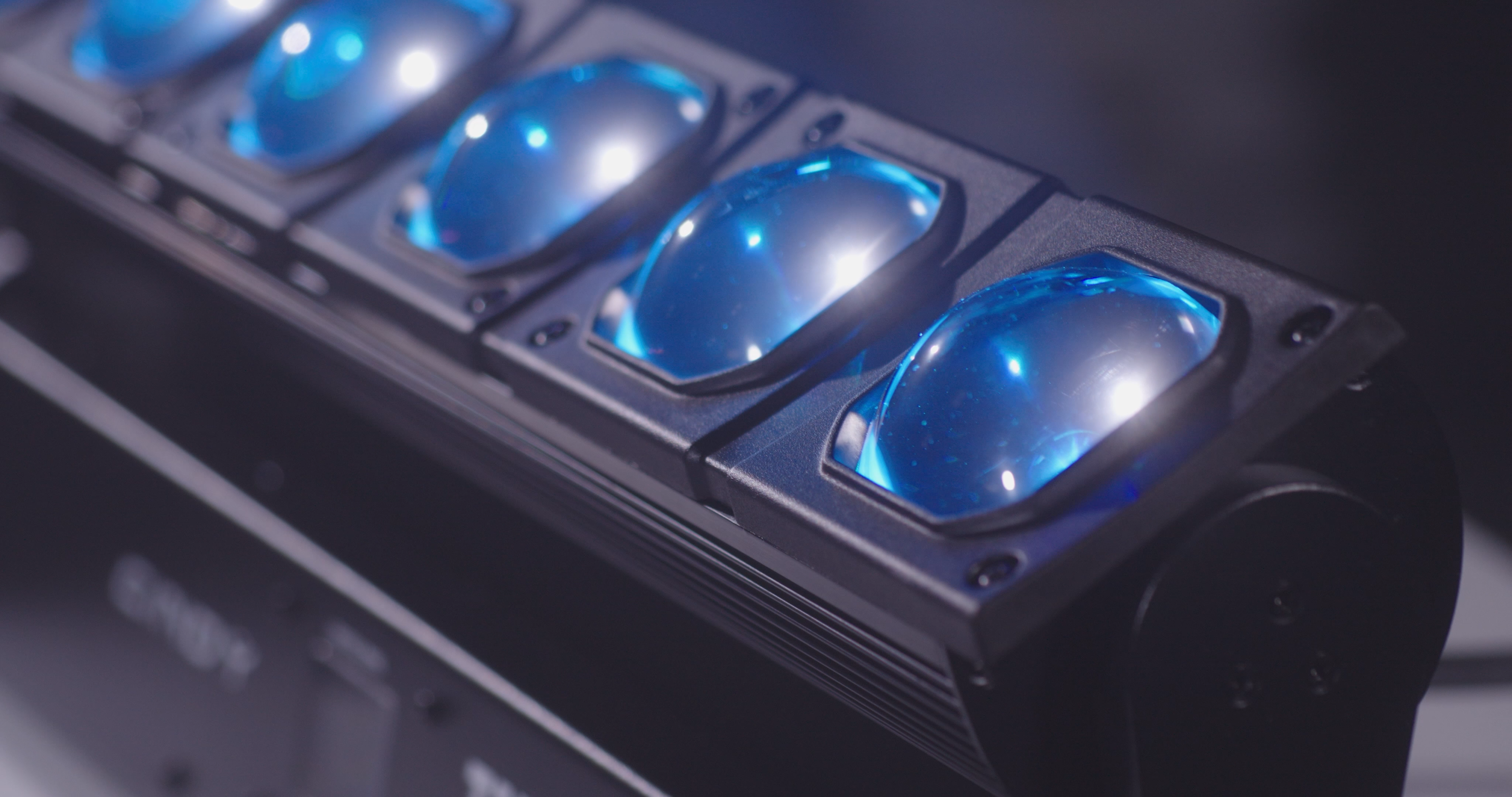

#Light Source: 6 pcs 30W RGBW 4 in 1 LED
#Beam Angle: 5°
#Luminaire Output: 1,300lm
#Illuminance (5°): 12,500lux @ 5m

动态效果

#LED: pixel control
#Selectable Tilt Ranges: 90°, 180°, 270°
#Dimmer: 0-100% electronics, 4 dimming curves options.
#Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.

电气/温度

#Input Voltage: 100V-240V,50/60Hz
#Power: 200W
#Temperature (Ambient): -5° to 45°

控制/连接

#Control Protocol: DMX, RDM
#DMX Channels: 18, 47, 53, 80

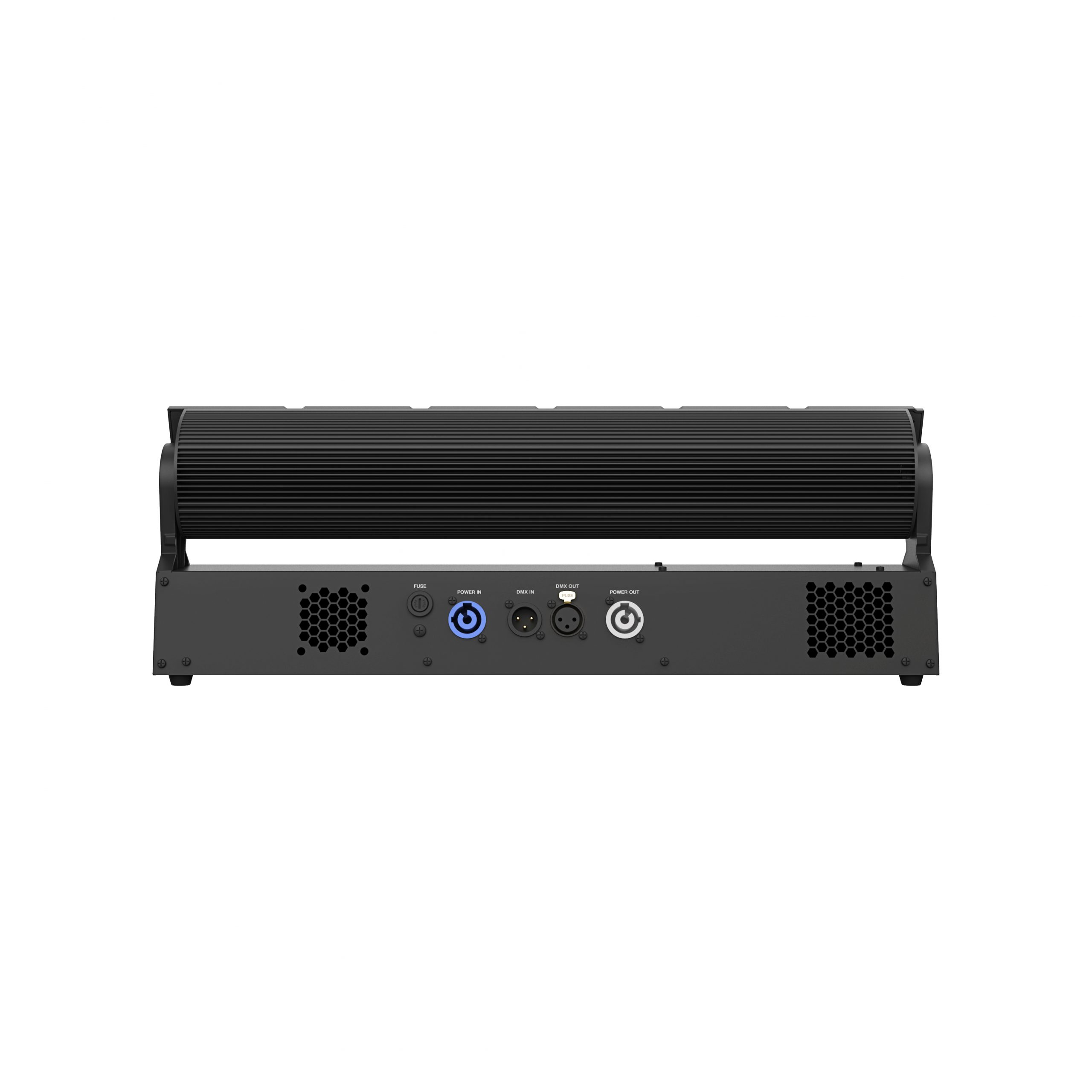

#3 pin XLR input/output

尺寸重量

#Size: 498*95*179mm
#Weight: 5KG
#Housing Colors: Black
#Housing Material: High-impact flame-retardant polymer
