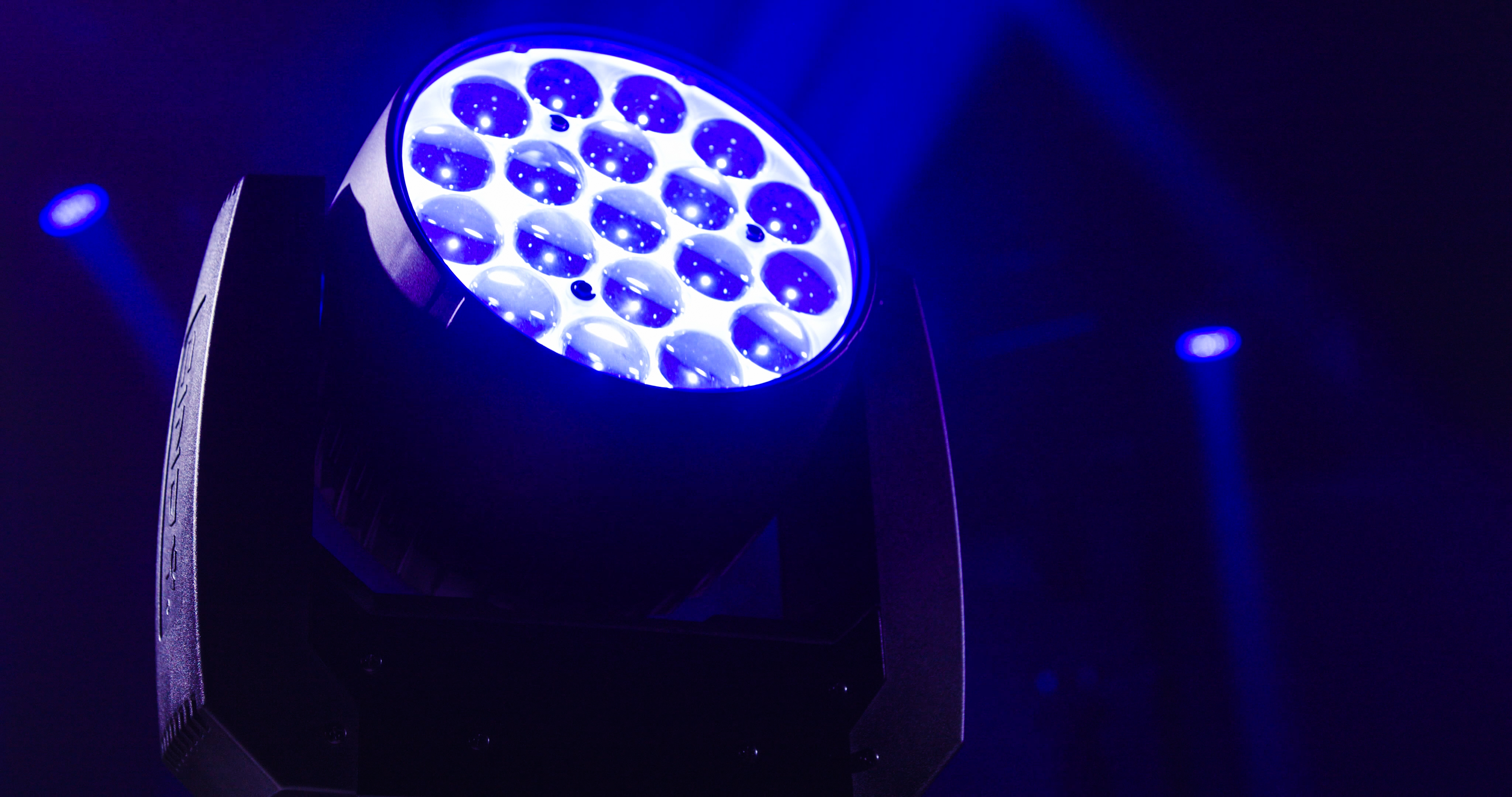

T2 WASH is a compact but powerful product, able to be a wash or a beam product. T2 WASH has 19 pcs of 20W RGBW 4 in 1 LEDs, featuring a zoom range from 10 to 50 degrees. Color fade and dimmer are extremely smooth, which can satisfy users’ needs to give a magic environment.

Technical & Specification

OPTICAL

＃Light Source: 19 pcs 20W RGBW 4 in 1 LED
＃Beam Angle: 10°-50°
＃Luminaire Output: 5,800lm
＃Illuminance (10°): 8,500lux @ 5m
＃Illuminance (50°): 780lux @ 5m
DYNAMIC EFFECT

＃Selectable Pan Ranges: 180°, 360°, 540°
＃Selectable Tilt Ranges: 90°, 180°, 270°
＃Dimmer: 0-100% electronics, 4 dimming curves options.
＃Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
＃Zoom: Motorized
＃Color Mixing：RGBW mixing or CMY mixing
ELECTRONIC/OPERATION TEMPERATURE

＃Input Voltage: 100V-240V, 50/60Hz
＃Power: 430W
＃Temperature (Ambient): -5° to 45°
CONTROL/CONNECTION

＃Control Protocol: DMX, RDM
＃DMX Channels: 15, 17, 22, 25, 38, 40
＃3 pin XLR input/output
PHYSICAL

＃Size: 306*218*398mm
＃Weight: 8.5KG
＃Housing Colors: Black
＃Housing Material: High-impact flame-retardant polymer
